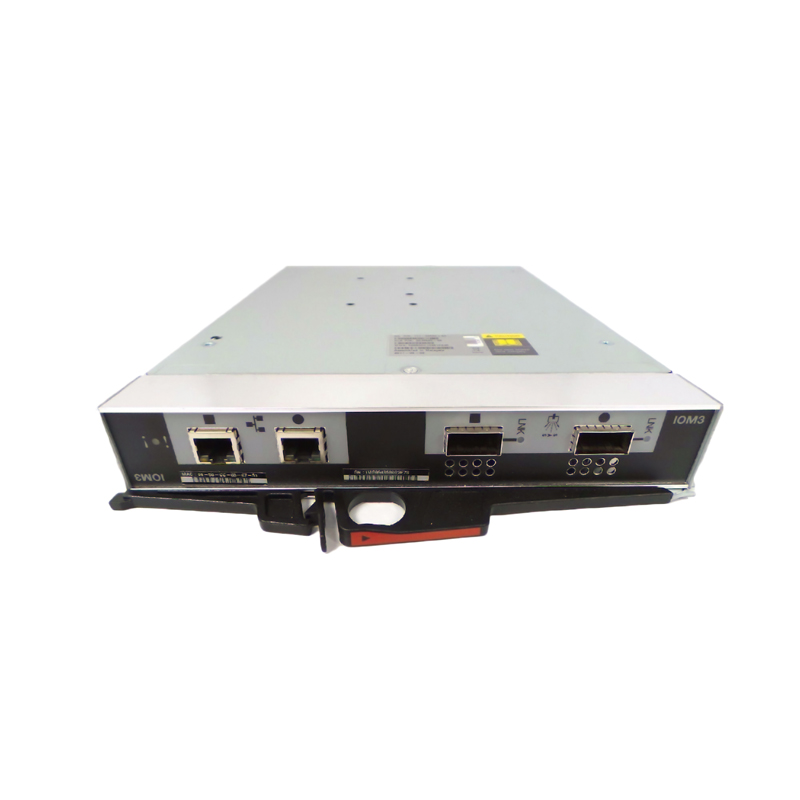

X5712A-R6 NetApp IOM3 3Gbps SAS Controller Module for DS4243 – 111-00569, 111-00485, 111-00128

Description

The NetApp X5712A-R6 is a 3Gbps SAS disk shelf module that is compatible with the DS4243 disk shelves for NetApp systems. Whether you’re looking for replacement NetApp components or upgrading your existing NetApp system, we have what you need. If you don’t see the part listed that you’re looking for, please use our Contact Us form; as we have many parts in inventory that are not listed. Please note that all NetApp components are used, fully tested, and backed by a 60 day warranty. Same day, expedited, and international shipping available!

The X5712A-R6 NetApp IOM3 3Gbps SAS Controller Module for DS4243 is also known by part numbers 111-00569, 111-00485, 111-00128, and others listed below.

X5712A-R6 / 111-00569 / 111-00485 / 111-00128 NetApp 3Gbps SAS Controller Module for DS4243 Details

In NetApp FAS series systems, an Input/Output Module (IOM) is a component that provides the intelligence for drive shelf operations and includes SAS ports for connecting the drive shelf to the controller shelf. In previous controller models, the IOM was referred to as an environmental service module (ESM). The X5712A-R6 module provides 2x 3Gbps SAS ports for connecting the drive shelf to the controller shelf, as well as 2x GbE Alternate Control Path (ACP) ports.

If an IOM fails, it should always be replaced as soon as possible. The specific details of your system configuration will determine whether you must run a version of Data ONTAP containing certain bug fixes before you hot-swap or replace an IOM, and whether you can perform a nondisruptive IOM hot-swap or a disruptive IOM replacement.

X5712A-R6 / 111-00569 / 111-00485 / 111-00128 NetApp 3Gbps SAS Controller Module for DS4243 Specifications

Interface

SAS 3Gb/s

Ports

2x 3Gb/s SAS, 2x GbE (ACP)

MPN

X5712-R6

Other PN

111-00569, 111-00485, 111-00128, 0948580, 94214-10

Compatibility

DS4243 disk shelves
