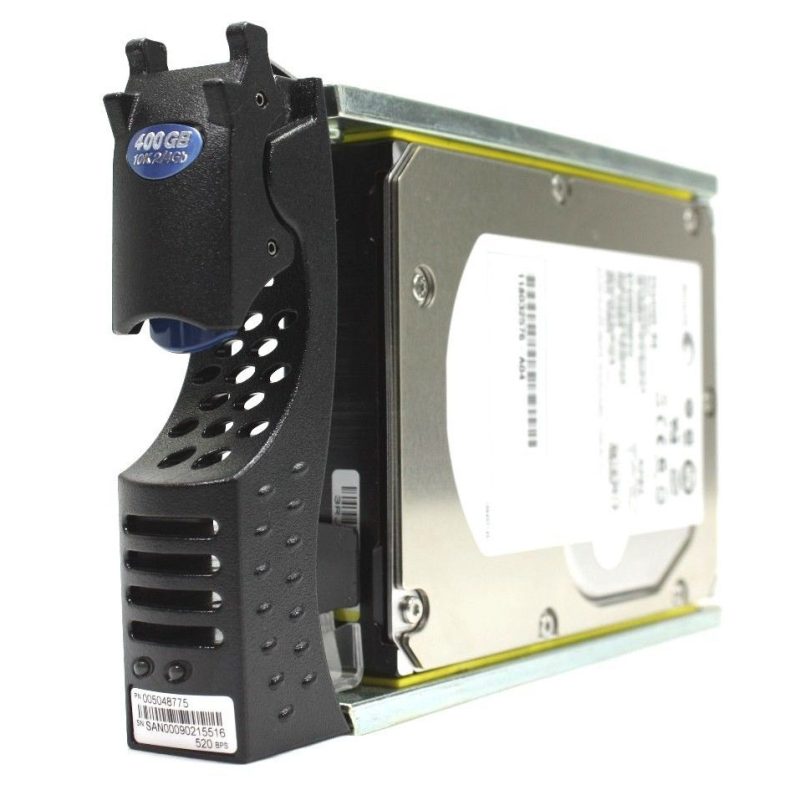

CX-4G10-400 EMC 4Gb/s 400GB 10k RPM FC Hard Drive 005048775, 005048837, 118032576-A04

Description

Maximize the performance of your EMC CX3 or CX4 series SAN. The EMC CX-4G10-400 / 005048775 / 118032576-A04 is a 400GB 4Gb/s 10k RPM FC hard drive. All EMC hard drives sold by SPS Pros are previously used, and backed by a 60 day warranty against defects.

The CX-4G10-400 is also known as part numbers 005048775, 118032576-A04. Various EMC 400GB 10K hard drives are manufactured by Seagate with the unique part number ST3400755FCV.

EMC CLARiiON CX-4G10-400 400 GB 10k RPM Drives

The EMC CLARiiON CX-4G10-400 10,000 revolutions per minute (RPM) 400 GB hard disk drives dramatically increase performance through improvements in disk operations such as rotational latency and seek rates – the factors that most directly affect access times. The 400 GB 10k RPM hard disk drives deliver 3.9 ms average read seek times and 2.98 ms average rotational latency times – both the fastest available for drives of these capacities available on the market.

Applications of the 400 GB 10k RPM Drives CX-4G10-400, 005048775, 118032576-A04

Using the 10k RPM drives such as part numbers CX-4G10-400, 005048775, 118032576-A04 in applications that use small block, random I/O is an important factor in realizing higher performance benefits. These applications have a tendency to minimize any caching advantages of the storage system. In addition, with applications such as these, the physical access to data on the disk has the greatest effect on overall performance. These small block, random I/O applications reap the greatest benefits from storage-system performance improvements achieved through the drive’s improved seek and rotational latency times.

CX-4G10-400 / 005048775 / 118032576-A04 EMC 400GB 10k RPM FC HDD Common Applications

• OLTP
• e-commerce
• ERP
• Database
• Web Server
• E-mail
• Data Replication

EMC CX-4G10-400, 005048775, 118032576-A04, 400GB 10k FC HDD Specifications

Interface

Fibre Channel

Capacity

400GB

RPM

10,000 RPM

Interface

4 GB/s

MPN

CX-4G10-400

Other PN

005048837, 005049681, 005048775, 005050324, 005048973, 118032576-A04, ST3400755FCV

Form Factor

3.5″ with tray

Platform Compatibility

EMC CX3, CX4,

EMC CX-4G10-400 / 005048775 / 118032576-A04 Enabling Technologies

These performance breakthroughs are made possible as a result of improved HDD spindle motors, as well as head / media designs that allow the disk media surface to rotate at incredible speeds. The improvements include:

• Advanced ferro-fluid bearing design to limit heat buildup and reduce power requirements.
• Advanced motor stator design to improve power-to-revolution ratios and also limit heat buildup.
• Improved head / disk interfaces, which allow for higher rotational speeds and improved head flying height performance and stability.
