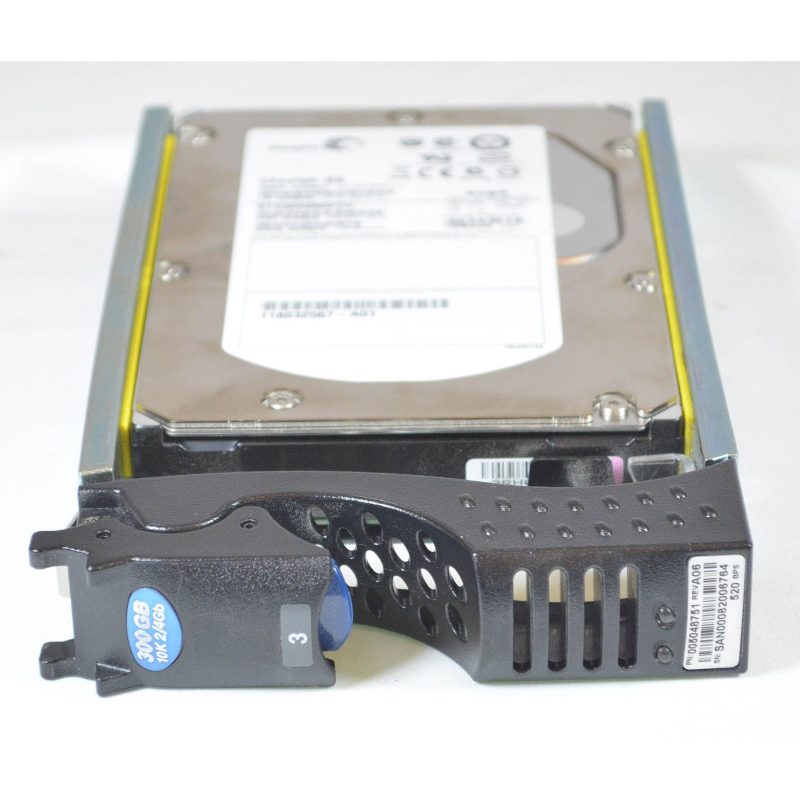

CX-4G10-300 EMC 4Gb/s 300GB 10k RPM FC Hard Drive 005048751, 005048953

Description

Maximize the performance of your EMC CX3 or CX4 series SAN. The EMC CX-4G10-300 / 005048751 / 005048953 is a 300GB 4Gb/s 10k RPM FC hard drive. All EMC hard drives sold by SPS Pros are previously used, and backed by a 60 day warranty against defects.

The CX-4G10-300 is also known as part numbers 005048751, 005048953. Various EMC 300GB 10K hard drives are manufactured by Seagate with the unique part number ST3300955FCV.

EMC CLARiiON CX-4G10-300 300 GB 10k RPM Drives

The EMC CLARiiON CX-4G10-300 10,000 revolutions per minute (RPM) 300 GB hard disk drives dramatically increase performance through improvements in disk operations such as rotational latency and seek rates – the factors that most directly affect access times. The 300 GB 10k RPM hard disk drives deliver 3.9 ms average read seek times and 2.98 ms average rotational latency times – both the fastest available for drives of these capacities available on the market.

Applications of the 300 GB 10k RPM Drives CX-4G10-300, 005048751, 005048953

Using the 10k RPM drives such as part numbers CX-4G10-300, 005048751, 005048953 in applications that use small block, random I/O is an important factor in realizing higher performance benefits. These applications have a tendency to minimize any caching advantages of the storage system. In addition, with applications such as these, the physical access to data on the disk has the greatest effect on overall performance. These small block, random I/O applications reap the greatest benefits from storage-system performance improvements achieved through the drive’s improved seek and rotational latency times.

CX-4G10-300 / 005048751 / 005048953 EMC 300GB 10k RPM FC HDD Common Applications

• OLTP
• e-commerce
• ERP
• Database
• Web Server
• E-mail
• Data Replication

EMC CX-4G10-300, 005048751, 005048953 300GB 10k FC HDD Specifications

Interface

Fibre Channel

Capacity

300GB

RPM

10,000 RPM

Interface

4 GB/s

MPN

CX-4G10-300

Other PN

005048836, 005048841, 005048972, 005049162, 005048842, 005049117, 005049691, 005049680, 005049679, ST3300955FCV, 9EB007-031, DMX-4G10-300

Form Factor

3.5″ with tray

Platform Compatibility

EMC CX, CX3, CX4, CX4-4PDAE, CX-4PDAE, DAE3P, DAE4P

EMC CX-4G10-300 / 005048751 / 005048953 Enabling Technologies

These performance breakthroughs are made possible as a result of improved HDD spindle motors, as well as head / media designs that allow the disk media surface to rotate at incredible speeds. The improvements include:

• Advanced ferro-fluid bearing design to limit heat buildup and reduce power requirements.
• Advanced motor stator design to improve power-to-revolution ratios and also limit heat buildup.
• Improved head / disk interfaces, which allow for higher rotational speeds and improved head flying height performance and stability.

Additional Part Numbers for the CX-4G10-300

005048836
005048841
005048972
005049162
005048842
005049117
005049691
005049680
005049679
