Description

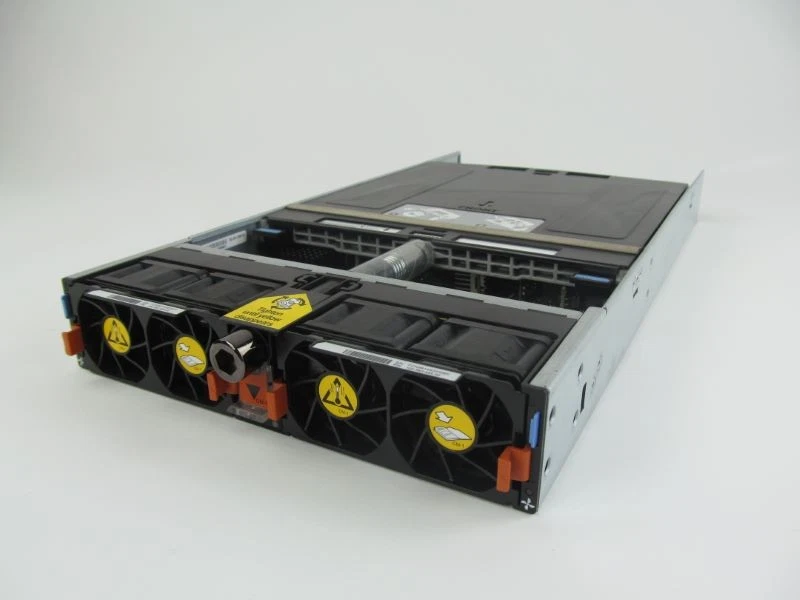

p>Note: This Service Processor (SP) does not include UltraFlex I/O modules or a power supply.
Part Numbers: 110-201-002D-05 / 303-201-005D
CPU: Intel Xeon Quad Core E5-2609 (~2.4GHz)
Memory: 24GB per SP
Whether you’re upgrading your EMC VNX5600 storage system or simply looking for a replacement Service Processor (SP), we have what you need. If you don’t see the part listed that you’re looking for, please use our Contact Us form; we have many parts in inventory that are not listed.
Please note that this EMC Service Processor is used and backed by a 60-day warranty. Same day, expedited, and international shipping available!
VNX5600 Overview
The EMC VNX2 family delivers mid-tier to enterprise-class storage, supporting file-only, block-only, and unified (block + file) implementations under the intuitive Unisphere® interface. Positioned between the VNX5400 and VNX5800, the VNX5600 is ideal for medium-to-large environments needing strong performance and capacity without the higher cost of larger models. This model uses a Service Processor Enclosure (SPE) with modular UltraFlex I/O, and its real-world hardware features a 2.4GHz Intel Xeon E5-2609 CPU with 24GB RAM per SP.
Key Specifications
| Specification | VNX5600 |
|---|---|
| CPU (per SP) | Intel Xeon E5-2609 (~2.4GHz, Quad-Core) |
| System Memory (per SP) | 24GB |
| Maximum Drive Count | Up to 500 |
| Maximum Raw Capacity | Up to ~2 PB |
| Max FAST Cache* | Up to ~1 TB |
| Form Factor | SPE (Service Processor Enclosure) – 2U or 3U (depending on 2.5" or 3.5" drives), plus DAEs for expansion |
| Host Connectivity | FC, iSCSI, FCoE (via UltraFlex I/O modules) |
*Exact FAST Cache limit depends on software licensing and configuration.
Physical & Power Specifications
- Drive Enclosures (DAEs): 2U (25 x 2.5" disks) or 3U (15 x 3.5" disks)
- Minimum / Maximum Drives: 6 min up to the model limit (500)
- Power Consumption: ~600–700 W (typical) for a loaded SPE (varies by config)
- AC Input Voltage: 100–240 VAC, 50–60 Hz
- Operating Temperature: 50° to 104° F (10° to 40° C)
- Non-operating Temperature: –40° to 158° F (–40° to 70° C)
- Relative Humidity (Operating): 10%–90% noncondensing
- Maximum Altitude (Operating): 10,000 ft (3,048 m)
Software Features (Optional / Licensed)
- FAST (Fully Automated Storage Tiering): Automated data movement between storage tiers for performance/cost optimization
- FAST Cache: Leverages Flash drives as an extended read/write cache
- Unisphere® Management: Single unified interface for provisioning and monitoring
- SnapView / VNX Snapshots: Local point-in-time copies
- MirrorView / Replicator: Remote replication for disaster recovery
- VNX File Features: CIFS/NFS, NDMP backup, File-level retention (in unified configurations)
Product Description
The EMC VNX5600 is a robust midrange solution in the VNX2 lineup, offering higher capacity and performance than entry-level models without the cost overhead of large-scale systems. Equipped with an Intel Xeon E5-2609 (~2.4GHz) quad-core CPU and 24GB RAM per Service Processor, the VNX5600 supports up to 500 drives, making it suitable for mixed workloads that require balanced IOPS, throughput, and capacity growth. Like other VNX2 systems, it supports both block and file protocols (unified) or can be configured for block-only or file-only implementations.
Why Buy from Us?
We understand the importance of reliable hardware and quick turnaround. Our pre-owned EMC Service Processor modules undergo thorough testing and are backed by a 60-day warranty. Same-day shipping options are available, and we also ship internationally. If you need additional parts or guidance on configuring your VNX5600 system, please reach out using our Contact Us form.
