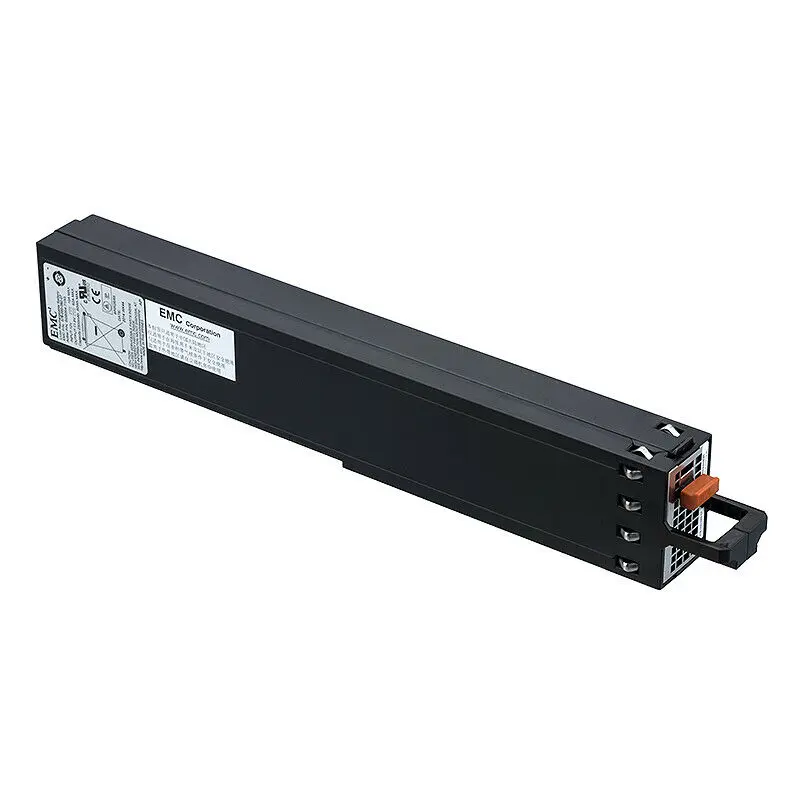

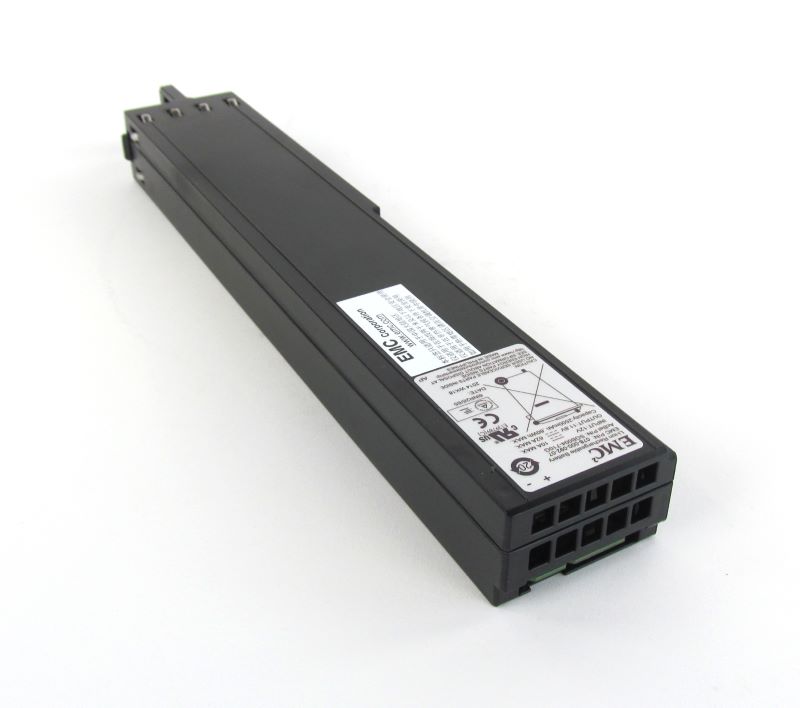

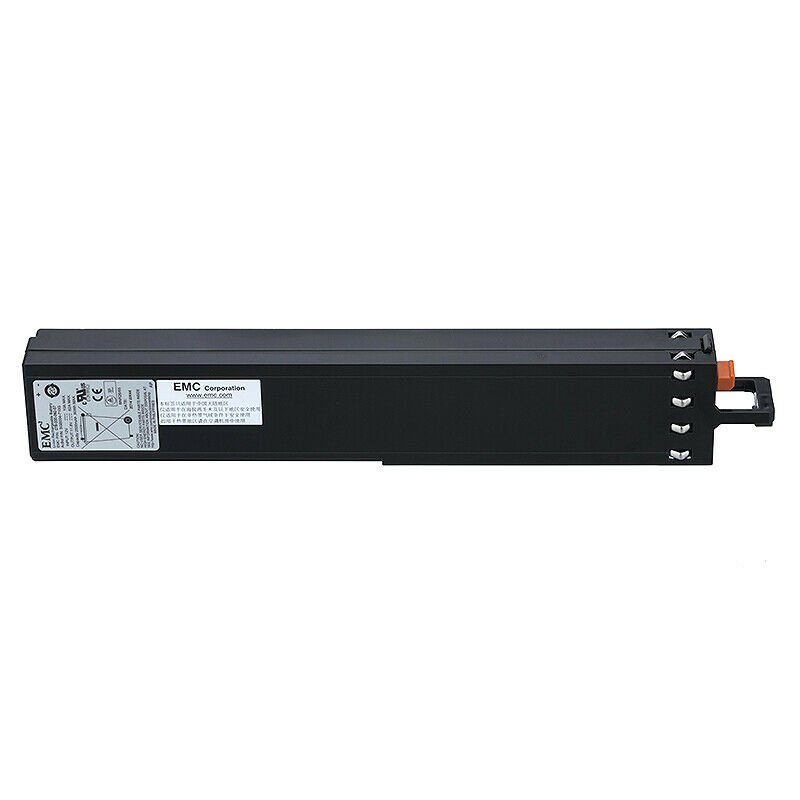

NEW 078-000-092-07 – EMC VNX5200 / VNX5400 / VNX5600 / VNX5800 / VNX7600 BBU Battery SGB004
SPS Pros is dedicated to providing top quality standby power supplies to keep your EMC VNX2 storage array running smoothly. This particular model with part numbers 078-000-092-07, 078-000-092-06, 078-000-092, and SGB004-710G is used by the original EMC VNX 5200/5400/5600/5800/7600 series. This EMC Battery is a 60 Wh 12V unit compatible with the EMC VNX 5200 & 5400 series systems.
These EMC VNX2 Batteries are NEW and come with a 60 day warranty.
EMC VNX5200 / VNX5400 / VNX5600 / VNX5800 / VNX7600 Battery 078-000-092-07 Fault Message
This BBU for EMC VNX5200/VNX5400 systems is a replacement for common alert/error messages:
Storage Array Faulted Bus 0 Enclosure 0 : Faulted Bus 0 Enclosure 0 BBU A : Not Ready Bus 0 Enclosure 0 BBU B : Not Ready
System cache disabling due to the SPS being degraded. Gather SP Collects and contact your service provider.
71678001 BBUA has been Removed
Special Note
This event may also be reported as part of the SP boot sequence, which is not a fault if it is followed by events such as the following:
espkg 71670002 BBUA Inserted.
espkg 71670003 BBUA State Changed (TestStarted to TestCompleted).
espkg 71670003 BBUA State Changed (NotBatteryReady to BatteryReady).
espkg 71670003 BBUA State Changed (Testing to BatteryReady).
EMC VNX 5200/5400/5600/5800/7600 BBU / SPS Battery Replacement
The suitable replacement part numbers for this BBU for the above VNX2 systems are:
078-000-092-07
078-000-092-06
078-000-092
SGB004-710G

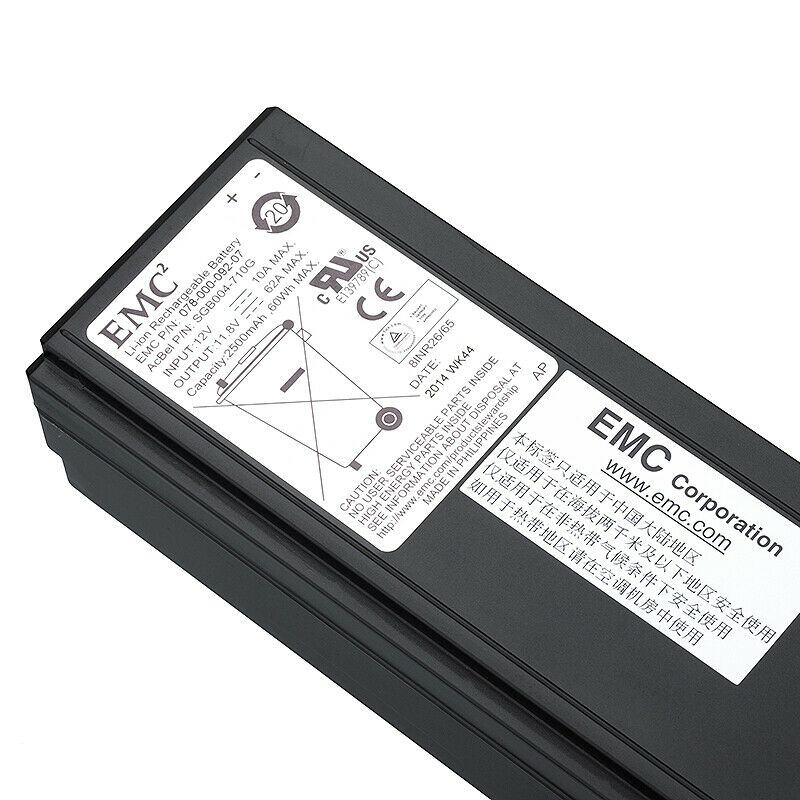

EMC VNX5200 / VNX5400 / VNX5600 / VNX5800 / VNX7600 BBU Specifications
Input: 12V @ 10A Max
Output: 11.8V @ 62A Max
Capacity: 2500mAh, 60Wh Max
EMC VNX2 BBU 078-000-092-07 Compatibility
EMC VNX5200
EMC VNX5400
EMC VNX5600
EMC VNX5800
EMC VNX7600
