EMC 078-000-085 1200W SPS Standby Power Supply
EMC VNX5100, VNX5300, VNX5500, VNX5700, VNX7500 SPS Replacement Battery 078-000-084 / 078-000-085 / 100-809-017 / YR194
SPS Pros is dedicated to providing top quality standby power supplies to keep your EMC storage array running smoothly. This particular model with part numbers 078-000-084, 078-000-085, 100-809-017 & YR194, is used by the EMC VNX series (excluding the VNX5700 & VNX7500 with the 4U DAE used as the vault drive, see 078-000-050). This EMC SPS is a 1200W unit compatible with the EMC VNX5100, VNX5300, VNX5500, VNX5700, VNX7500.
All EMC SPS units are fully refurbished with brand new battery cores and come with a 60 day warranty.
EMC VNX Series Standby Power Supply (SPS) / Replacement Battery 078-000-084 / 078-000-085 / 100-809-017 / YR194
As shown in Figure 1, the SPE uses one 1.2-kilowatt SPS to maintain power to the storage system during a power loss to allow for a full dump of the write cache to a reserved area on persistent disk. An additional SPS can be added for further redundancy
When only one SPS is used, the power output connectors for the SPS supply power to SP A and the first DAE on the first back-end loop. The power for SP B and the remaining power to the first DAE on the first back-end loop are supplied by the PDU within the CLARiiON 40U rack. When two SPSs are used, the power output connectors from the additional SPS power both SP B and the first DAE.

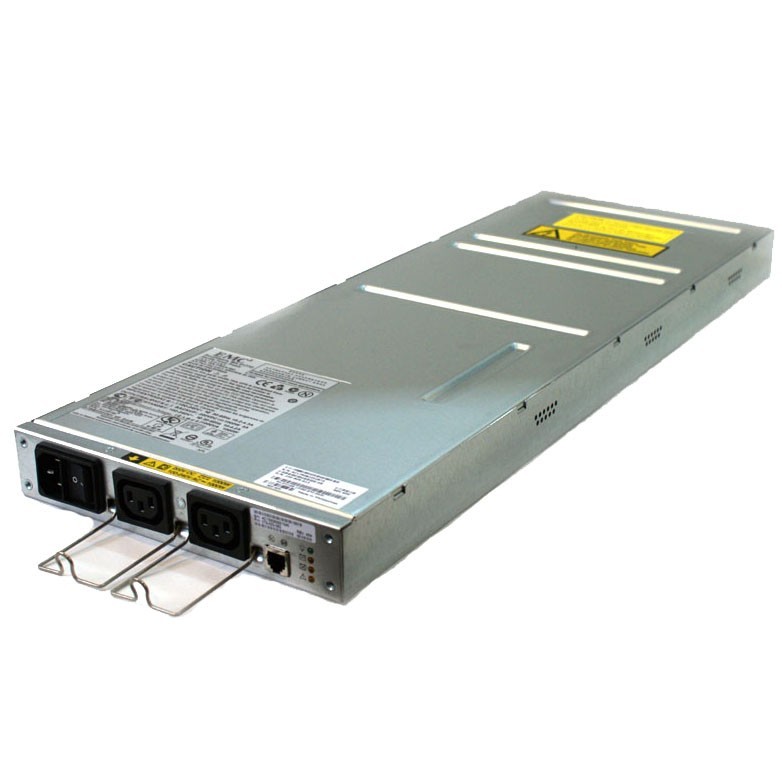

Figure 1. View of EMC VNX Standby Power Supply (SPS) 078-000-084 / 078-000-085 / 100-809-017 / YR194
It is important to cable each SPS so it connects completely to either the A side or the B side. For example, if you are looking at the SPS from the back, they should be configured as follows:
- SPS on the right: Power-out and sense cables should connect to power supply A and SP A.
- SPS on the left: Power-out and sense cables should connect to power supply B and SP B (optional).
If an SPS is cabled with the SPS sense cable going to SP A and the power-out cable going to power supply B (or vice versa), error conditions are displayed when the SPS is tested while it is charging.
Josh –
Finding a replacement for our EMC VNX was very difficult. A good number of places that list the part on their website, but this was the only place that actually had it in stock.
