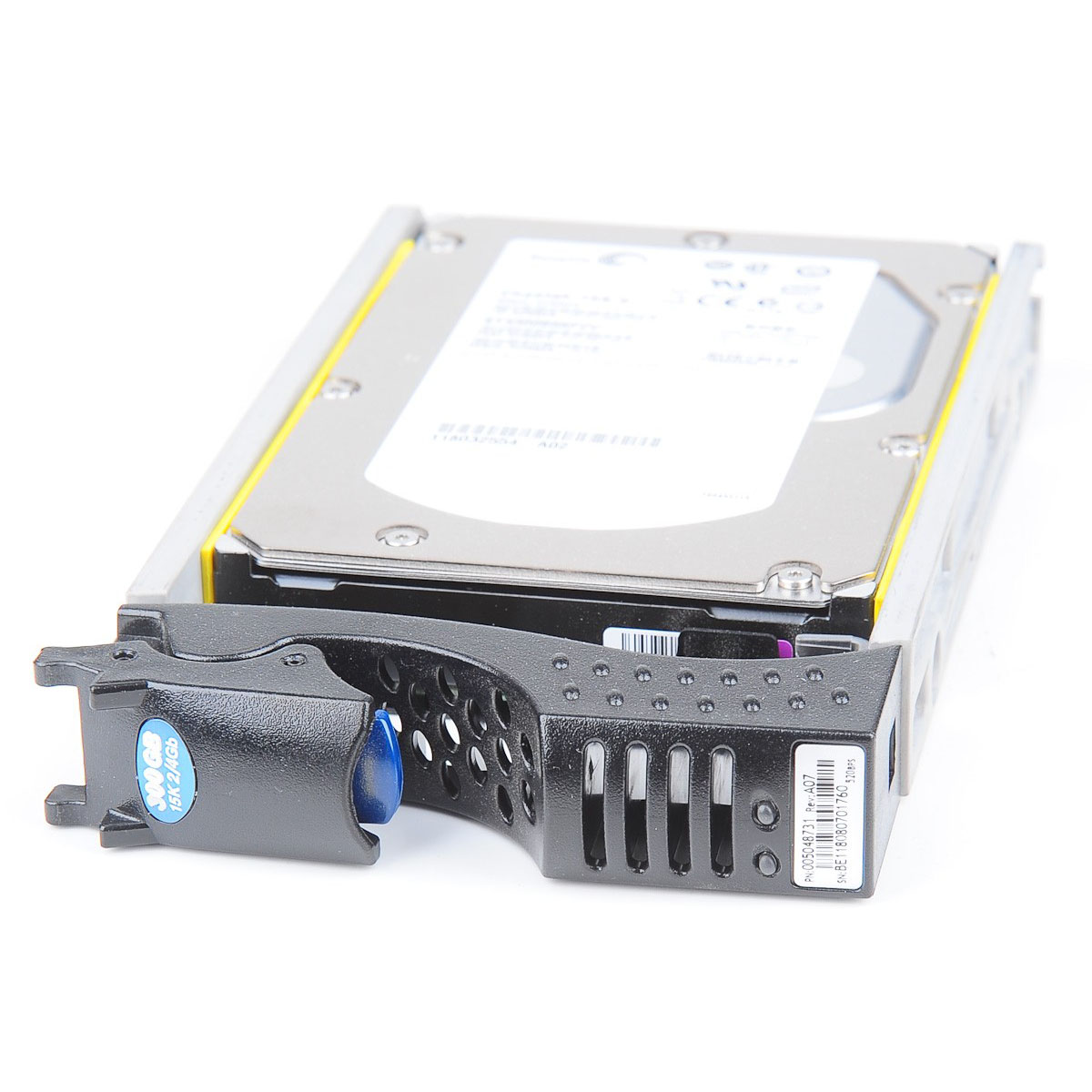

CX-4G15-300 EMC 4Gb/s 300GB 15k RPM FC Hard Drive 005048731, ST3300657FC

Description

Maximize the performance of your EMC CX3 or CX4 series SAN. The EMC 005048731 / CX-4G15-300 is a 300GB 4Gb/s 15k RPM FC hard drive. All EMC hard drives sold by SPS Pros are previously used, fully-tested, and backed by a 60 day warranty against defects. Same day and expedited shipping available!

The CX-4G15-300 is also known as part number 005048731. Various EMC 300GB 15K hard drives are manufactured by Seagate with the unique part number ST3300657FC.

EMC CLARiiON CX-4G15-300 300 GB 15k RPM Drives

The EMC CLARiiON CX-4G15-300 15,000 revolutions per minute (RPM) 300 GB hard disk drives dramatically increase performance through improvements in disk operations such as rotational latency and seek rates – the factors that most directly affect access times. The 300 GB 15k RPM hard disk drives deliver 3.5 ms average read seek times and 2.0 ms average rotational latency times – both the fastest available for drives of these capacities available on the market.

Applications of the 300 GB 15k RPM Drives 005048731

Using the 15k RPM drives such as part number 005048731 in applications that use small block, random I/O is an important factor in realizing higher performance benefits. These applications have a tendency to minimize any caching advantages of the storage system. In addition, with applications such as these, the physical access to data on the disk has the greatest effect on overall performance. These small block, random I/O applications reap the greatest benefits from storage-system performance improvements achieved through the drive’s improved seek and rotational latency times.

005048731 / CX-4G15-300 EMC 300GB 15k RPM FC HDD Common Applications

• OLTP
• e-commerce
• ERP
• Database
• Web Server
• E-mail
• Data Replication

EMC CX-4G15-300, 005048731, 005048848, 300GB 15k FC HDD Specifications

Interface

Fibre Channel

Capacity

300GB

RPM

15,000 RPM

Interface

4 GB/s

MPN

CX-4G15-300

Other PN

005049692, 005048731, 005048848, 005048950, 005049031, 005048741, 005048926, 005049119, 005048840, 005048835, 005048969, 005049156, 005048856, ST3300657FC, 118032554-A04,118032659-A01, 9FL004-031,  F198G, 118032600-A01, 118032688-A02

Form Factor

3.5″ with tray

Platform Compatibility

EMC CX3, CX4, CX4-4PDAE, CX-4PDAE, DAE3P, DAE4P

EMC CX-4G15-300 / 005048731 Enabling Technologies

These performance breakthroughs are made possible as a result of improved HDD spindle motors, as well as head / media designs that allow the disk media surface to rotate at incredible speeds. The improvements include:

• Advanced ferro-fluid bearing design to limit heat buildup and reduce power requirements.
• Advanced motor stator design to improve power-to-revolution ratios and also limit heat buildup.
• Improved head / disk interfaces, which allow for higher rotational speeds and improved head flying height performance and stability.

Additional Part Numbers for the CX-4G15-300

005048741
005048848
005048926
005048950
005049031
005049119
005048840
005048835
005048969
005049156
005048856
