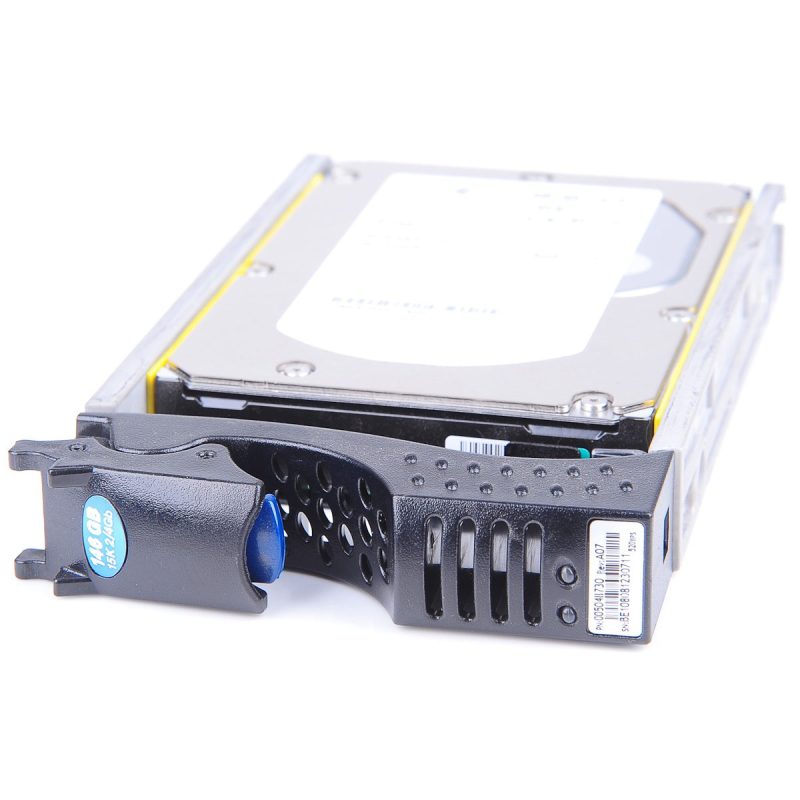

CX-4G15-146 EMC 4Gb/s 146GB 15k RPM FC Hard Drive – 005048701, 005048619, 005048847, 005048730

Description

Maximize the performance of your EMC CX3 or CX4 series SAN. The EMC 005048701 / 005048730 / 005048619 / 005048847 / CX-4G15-146 is a 146GB 4Gb/s 15k RPM FC hard drive. All EMC hard drives sold by SPS Pros are previously used, fully-tested and backed by a 60 day warranty against defects.

The CX-4G15-146 is also known as part numbers 005048701, 005048730, 005048619, 005048847 & 118032599-A01. Various EMC 146GB 15K hard drives are manufactured by Seagate with the unique part number ST3146855FCV.

EMC CLARiiON CX-4G15-146 146 GB 15k RPM Drives

The EMC CLARiiON CX-4G15-146 15,000 revolutions per minute (RPM) 146 GB hard disk drives dramatically increase performance through improvements in disk operations such as rotational latency and seek rates – the factors that most directly affect access times. The 146 GB 15k RPM hard disk drives deliver 3.7 ms average read seek times and 2.0 ms average rotational latency times – both the fastest available for drives of these capacities available on the market.

Applications of the 146 GB 15k RPM Drives 005048730

Using the 15k RPM drives such as part numbers 005048701, 005048730, 005048619, 005048847 & 118032599-A01 in applications that use small block, random I/O is an important factor in realizing higher performance benefits. These applications have a tendency to minimize any caching advantages of the storage system. In addition, with applications such as these, the physical access to data on the disk has the greatest effect on overall performance. These small block, random I/O applications reap the greatest benefits from storage-system performance improvements achieved through the drive’s improved seek and rotational latency times.

005048730 / CX-4G15-146 EMC 146GB 15k RPM FC HDD Common Applications

• OLTP
• e-commerce
• ERP
• Database
• Web Server
• E-mail
• Data Replication

EMC CX-4G15-146, 005048701, 118032599-A01, 146GB 15k FC HDD Specifications

Interface

Fibre Channel

Capacity

146GB

RPM

15,000 RPM

Interface

4 GB/s

MPN

CX-4G15-146

Other PN

005048619, 005048660, 005048701, 005048730, 005048740, 005048839, 005048834, 005048846, 005048968, 005048844, 005048855, 005049431, 005048749, 005048968, 005048749, 118032599-A01, ST3146855FCV, 118032523-A03, 118032599-A01, 0PY611, PY611, NX292, 0NX292, 9Z2007-031, 118032553-A02

Form Factor

3.5″ with tray

Platform Compatibility

EMC CX3, CX4,

EMC CX-4G15-146 / 005048701 / 005048730 / 005048619 / 005048847 Enabling Technologies

These performance breakthroughs are made possible as a result of improved HDD spindle motors, as well as head / media designs that allow the disk media surface to rotate at incredible speeds. The improvements include:

• Advanced ferro-fluid bearing design to limit heat buildup and reduce power requirements.
• Advanced motor stator design to improve power-to-revolution ratios and also limit heat buildup.
• Improved head / disk interfaces, which allow for higher rotational speeds and improved head flying height performance and stability.

Additional Part Numbers for the CX-4G15-146

005048660
005048740
005048839
005048834
005048846
005048968
005049424
005048730
005048844
005048855
005049431
